تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: Screate DALA
رقم الموديل: TL-2000S
شروط الدفع والشحن
الحد الأدنى لكمية: قابل للتفاوض
الأسعار: negotiable
تفاصيل التغليف: التعبئة القياسية، حسب متطلبات العملاء
وقت التسليم: 7 - 15 يوم عمل
شروط الدفع: T / T، الخ
بيانات القياس: |
كتلة وعنق أو قطر |
طلب: |
سلك مسطح، سلك دائري |
قياس: |
0.02 ~ 6mm و 0.2 ~ 25mm |
التكرار: |
± 0.03um |
دقة: |
± 0.5um |
مقاس: |
224.6*36*62mm |
مصدر طاقة العمل: |
24VDC ± 5 ٪ ، كحد أقصى. 30W |
تواصل: |
wifi ، rs485 modbus rtu |
بيانات القياس: |
كتلة وعنق أو قطر |
طلب: |
سلك مسطح، سلك دائري |
قياس: |
0.02 ~ 6mm و 0.2 ~ 25mm |
التكرار: |
± 0.03um |
دقة: |
± 0.5um |
مقاس: |
224.6*36*62mm |
مصدر طاقة العمل: |
24VDC ± 5 ٪ ، كحد أقصى. 30W |
تواصل: |
wifi ، rs485 modbus rtu |
DALA TL-2025D can be managed by touch screen,computer and cellphone,like parameter setting ,measurement data management ,and so on,customers can choose as their application request.

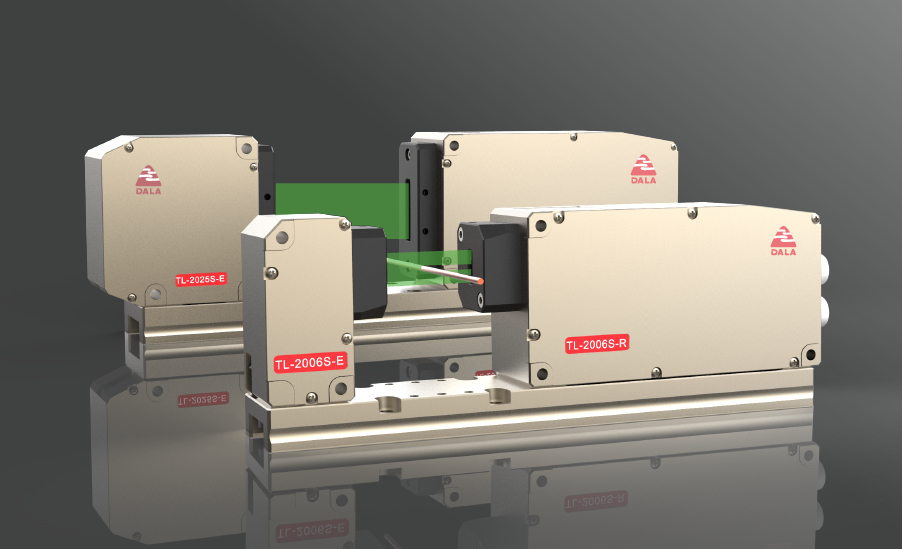

| Model | TL-2006S | TL-2025S | |
|---|---|---|---|
| Axis | 1-axis | 1-axis | |
| Sampling frequency | 5KHz | 10KHz | |
| Measurement range | 0.02~6mm | 0.2~25mm | |
| Repeatability | ±0.03μm(1) | ±0.1μm(2) | |
| Measurement accuracy | ±0.5μm(3) | ±3μm(4) | |
| Working power | 24VDC ± 5%, Max. 30W | ||
| Application field | Round wire ,Transparent wire, Flat wire | ||
| Measurement data | Round wire, clear wire, flat wire,rod stock, tubing, etc. | ||
| Communication port | Default:WIFI,RS485 MODBUS RTU,CAN Option:PROFIBUS,PROFINET, EtherNet/IP EtherNet,etc. |
||
| Electrical port | Default:Digital output (relay), Digital input,Analog input encoder pulse input port. Option: PI feedback control(3) |
||
| Environmental adaptability |
Working Environment |
0~50 ℃ | |
| Working Environment | 20~85%RH(No condensation) | ||
| Working environmental brightness | Brightness of working environment Incandescent light, fluorescent lamp 3000lx or less | ||
| Vibrating resistance | 10~55Hz full amplitude 1.5mm in XYZ direction for 2 hours | ||
| Impact resistance | 10G/6ms | ||
| Data colletion & analysis | DMS1000 measurement software system,DS14 ZT display and control system | ||
| Out-of-tolerance alarm | Support | ||
| Transparent mode | Support | ||
| Water-proof grade | IP67 | ||
NOTE:
(1)Set average time to 0.1s and measure the ±2σvalue of the φ1mm round rod at the measurement area center;
(2)Set average time to 0.1s and measure the ±2σvalue of the φ10mm round rod at the measurement area center;
(3)Move φ1mm round rod in the measurement area of 2*2mm and conduct measurement error;
(4)Move φ9mm round rod in the measurement area of8*8mm and conduct measurement error;Move φ18mm round rod in the measurement area of4*4mm and conduct measurement error;
